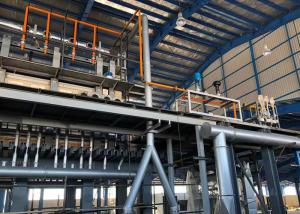

5tpd Recuperative Furnace

Brand Name : JEFFER

Model Number : Customized

Certification : ISO9001, ISO14001, ISO45001

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 1 set per 3 months

Delivery Time : 90 days after received the down payemnt

Packaging Details : Wooden case, tray, steel frame, etc

Capacity : 10 tpd

Material : Refractory materials

Kind of glass : Soda-lime

Color : Flint

Condition : New

Kind of Fuel : Natural gas

Consumption : Automatic

Waranty : One year

Application : Glass industry

After-salses service : Engineering overeas service available

Contact Now

5 Ton Per Day, Perfume Bottle Making, Recuperative Furnace, Glass Material Melter​


1. Brief Description


Glass is a special amorphous inorganic nonmetallic material. The main component is silicate, a non-crystalline solid with an irregular structure.


Glass furnace is a melting device, which is the most necessary and important equipment for the glass industry.


Recuperative furnace, with a narrow melting tank, is using a steel recuperator to pre-heat the combustion air.


Glass melting is the most important process in glass production, it is a forming process where the batched materials form a qualified liquid evenly with no bubbles under high temperature heating.




2. Advantage


ItemDescription
1Stable flame
2No reversal
3Small footprint
4Lower investment

3. Furnace structure


  • Melting section

It is the part which melts batched materials and Clearing and homogenizes glass liquid. In the upper space of the melting section is referred to as the flame space, the lower part is melting tank.


  • Dog house

Batched materials feed into the furnace through dog house, the heat is transferred via flame space to the glass liquid.


  • Air, gas access

The heated air and gas flow into the pre-combustion room for mixing via this access after they flow out of the regenerator. This is also an access for the flue gas to flow into the regenerator from the flame space.


  • Port

It is an important part of furnace, it is the place where the fuel is mixed with the preheated air, also an access for the preheated air in to the furnace and exhausting the waste gas out.


4. Furnace melting technology system


Furnace melting technology includes temperature, pressure, bubbling, glass liquid level, fuel, reversing system etc.


The temperature means the temperature the of melting tank, not the whole furnace. The distribution of temperature is from the melting tank through the length of the furnace.


Furnace pressure is the static pressure of the gas system, which is determinate by pressure distribution curve.


If the furnace is in a negative pressure situation, the cold air will be absorbed into the flame space and change the internal state of furnace, reduce the temperature and increase the energy consumption, even more, the internal temperature of the furnace will not distribute homogeneously. However, the pressure of the furnace cannot exceed the standard, if the pressure is too big, it will increase the energy consumption, shorten the life span of furnace, and the clearing and cooling of glass liquid will be affected.
